Truss Head Semi Tubular Rivet

Semi Tubular Rivet鉚釘頭形狀	一般圓面               圓薄                圓邊平面
A  面徑 (mm)	3 – 12 mm
B  管徑 (mm)	1.3 – 8 mm
C  長度 (mm)	3 – 100 mm

Product Description

Descriptions:

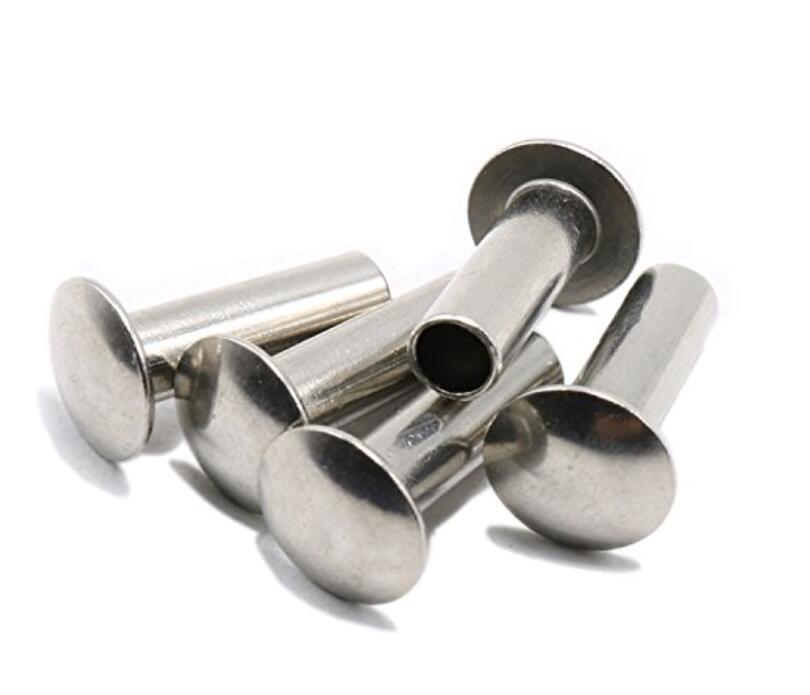

Semi-Tubular Rivets (also known as Tubular Rivets) are similar to solid rivets, except they have a partial hole (opposite the head) at the tip. The purpose of this hole is to reduce the amount of force needed for application by rolling the tubular portion outward.
The force needed to apply a semi-tubular rivet is about 1/4 of the amount needed to apply a solid rivet. Tubular Rivets can also be used as pivot points (a joint where movement is preferred) since the swelling of the rivet is only at the tail. Permanent fastener with good joint strength.
Rivet clinches can be roll-clinched, segmented (star set), spun, flared or press clinched.
Tubular-hole rivets often used to pierce and clinch materials (leather-corrugated-plastic-rubber-fabric) without a pre-drilled or punched work-piece hole.

Specifications:
Material: Aluminum
Shank Diameter(D): 3mm/0.12inch
Shank Length(L): 10mm/0.4inch
Head Diameter(A): 5.5mm/0.22inch
Totally Length(L+T):11mm/0.43inch
Color: Silver Tone
Net Weight: 21g

Package Content:
100pcs(+/-2%) x Semi-Tubular Rivet
