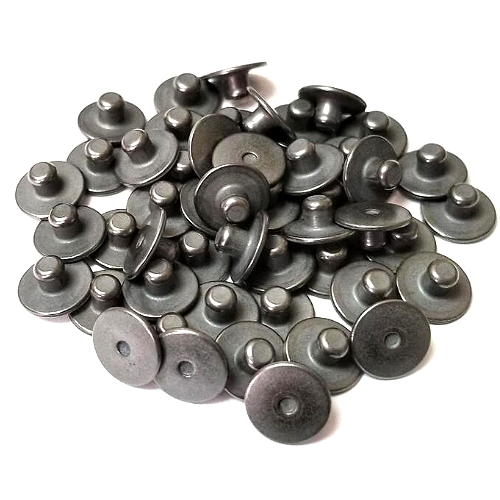

Description: ECG EEG EKG EMG Electrode snap button
Material: Copper, Iron
Spring Wire: Stainless Steel Wire, Phosphor Copper Wire, Manganese Steel Wire, Carbon Steel Wire, etc.
Surface Treatment: Nickel Plating, Gold Plating, Tin Plating, Tin-plated with a Core of Gold Plating, etc.
Copper-plated with Nickel Electrode snap button Product Information: Material: Brass Surface
Plating: Tin-plated with a core of gold plating and nickel plating 80″-130″.
Retention Force:
- The insertion force with the corresponding male clip is 1.5-3.5kg.
- The extraction force is 1-2kg.
Salt Spray Test: Pass the neutral salt spray test for 24 hours without oxidation.
Appearance:
- No scratches or oxidation on the surface.
- The springs on both sides remain parallel, without sagging or bending, and the plating does not peel off.
- The overall thickness of the clip remains uniform.
Application Requirements: The performance of the clip should not be less than 30% of its original value after being inserted and removed 45 times per minute for 1000 times with the corresponding male clip.
